Step 1 – Disassemble

Disassemble the drill body.  There are a number of obvious screws, and one hiding under the rubber grip.  Prise the grip off, starting at the bottom with a flat screw driver.  Once open you can easily remove the motor from the case and planetary gearbox.

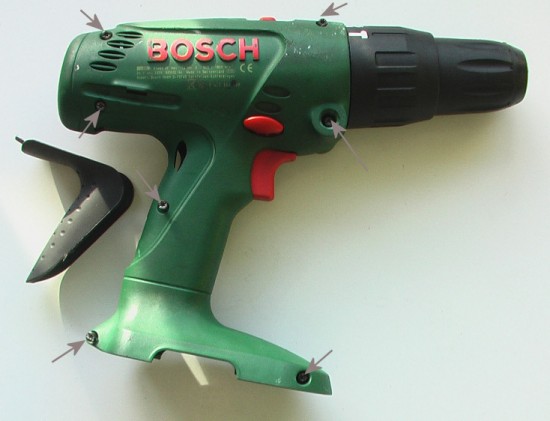

screw position

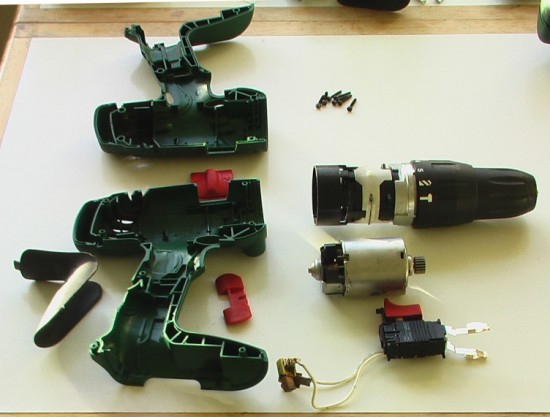

If your drill is a second hand job, get your cleaning hat on and clean off all the carbon dust and other dirt

If your drill is a second hand job, get your cleaning hat on and clean off all the carbon dust and other dirt
